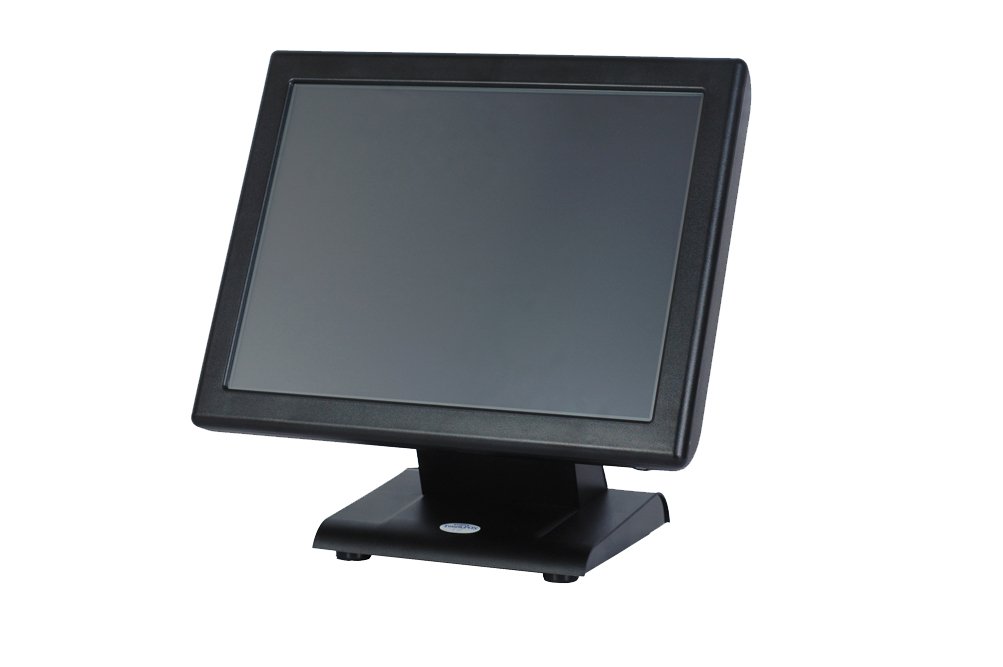

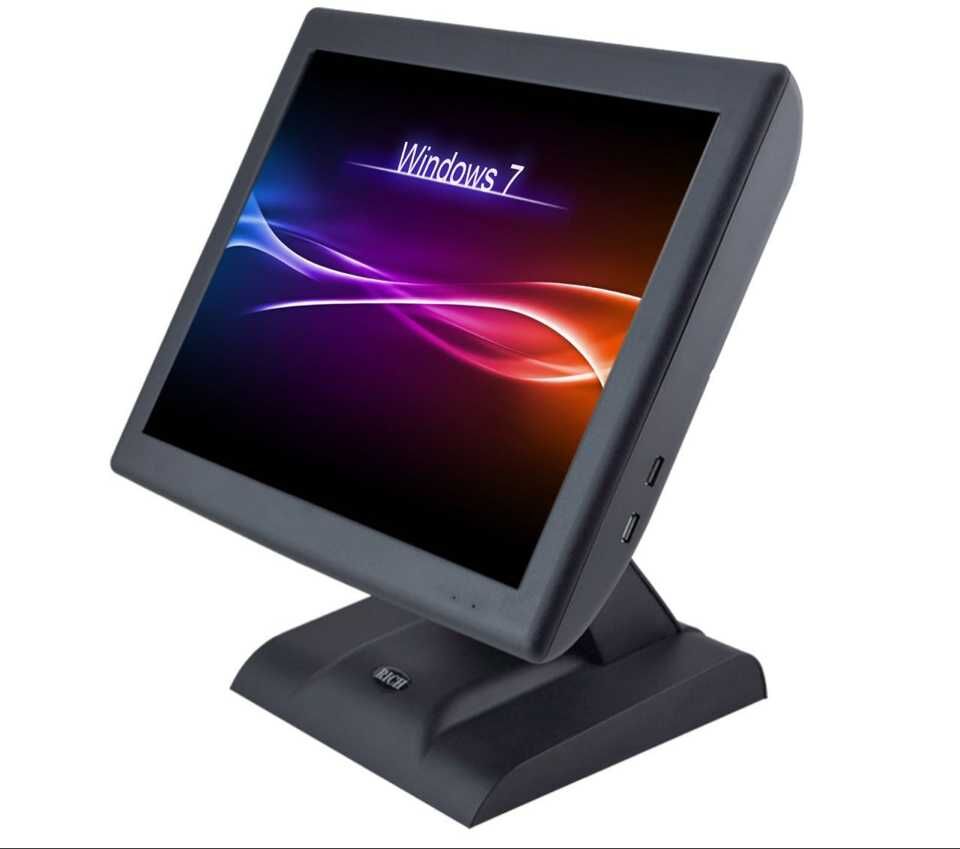

1037 Mainboard All in one Touchscreen POS terminal
Product Name:
1037 Mainboard All in one Touchscreen POS terminal
:
:
:


Product Description



1037 Mainboard NW-526M All in one touch POS terminal

  • HIGHLIGHTS:

  • Using top quality industrial motherboard
  • 15-inch TFT LED Monitor, 1024 x 768,32bit colour
  •  Five line resistance touch screen, the click life can reach 3.5 million times.
  • Excellent personalized design adapt to any environment
  • Modular design & convenient maintenance
  •  Specificaitons:
  •

    * Using top quality industrial motherboard

    * 15-inch TFT LED Monitor, 1024 x 768,32bit colour

    * Five line resistance touch screen, the click life can reach 3.5 million times.

    * Excellent personalized design adapt to any environment

    * Modular design & convenient maintenance

    Item

    NW-526M

    Mainboard

    Intel® Celeron® Processor 1037U(2M Cache, 1.80 GHz)

    Processor

    Intel® Celeron 2M Cache1.8GHz

    Chipset

    Intel® NM70

    Memory

    1 DDR 533/667 Slot, 2GB

    Graphical Display

    Integrated Intel GMA950, Support DirectX9.0







    Outer I/O Interface

    RJ-45 LAN Port x 1; PS/2 Keyboard Port x 1

    VGA Port x 1; USB2.0 x 4

    Serial Port x 2; Parallel Port x 1

    DC Power Port x 1

    Video Memory

    Max Support 224MB Dynamic Video Memory

    HDD

    32G SSD

    Customer display

    LCD display (optional )

    Monitor

    15" TFT LED touch monitor

    Brightness

    250cd/m2

    Resolution

    1024x768(max)

    Touch Screen

    Top quality five line resistance touch screen

    Visible Angle

    Horizontal: 140, Vertical: 130

    Operation Temperature

    0°C to 40°C

    Storage Temperature

    -20°C to 40°C

    Power

    DC 12V Outer Adapter Input
