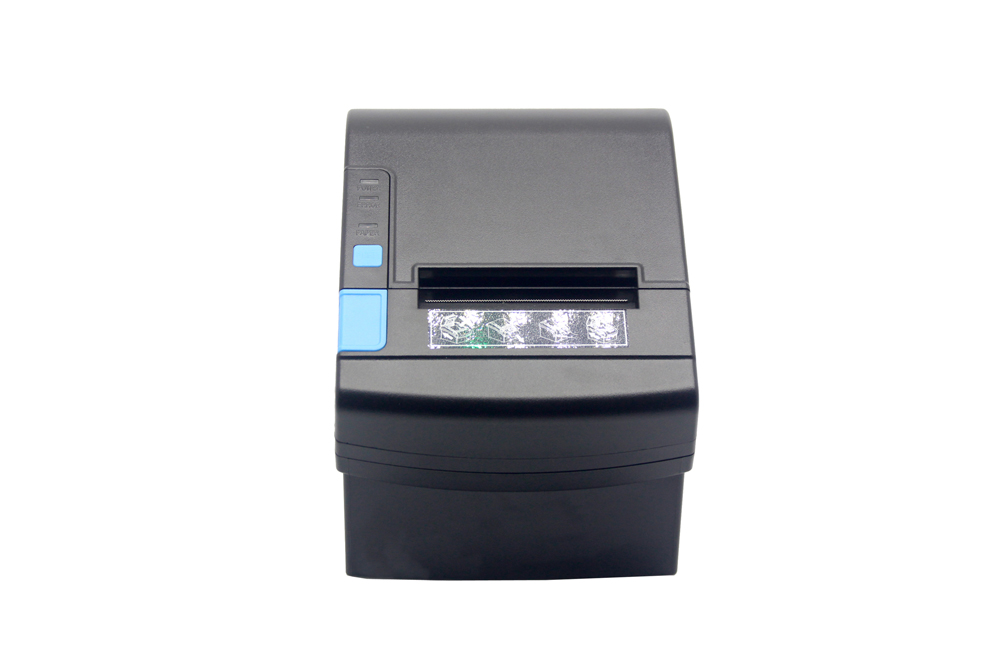

WiFi thermal receipt printer

Product Name:

WiFi thermal receipt printer

Product Description

Main features:

• Compatible with Mobile devices including IOS,Android and Windows

• WiFi or BT for option,with fixed USB interface

• Support AP or STA,AP&STA at same time(see networking architecture as below)

• Support 802.11b/g/n wifi standard

• External antenna with stable signal

• 200M transmission distance

Model		NW-90W
Printing	Print Method	Direct Thermal
	Print Speed	260mm/s
	Resolution	576dots/line or 572dots/line
	Printing Width	72mm
	Paper separator(option)	48mm/52mm/56mm/64mm/68mm/76mm/80mm
	Interface	USB+WiFi
	Page Mode	Support
Memory	Input buffer	4M
	NV Flash	256kbytes
Fonts	Font A	12x24
	Font B	9x17
	Chinese	GB18030,BIG5 24x24dots
	Japanese/Korea	Support
	User-defined	Support
Barcode	1D	UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
	2D	PDF417, QR code,Datamatrix
Detection	Sensors	Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional)
Power Supply	Input	AC 100V-240V 50/60HZ
	Output	DC 24V/2.5A
Paper	Paper Type	Thermal Receipt Paper
	Paper Width	48mm/52mm/56mm/64mm/68mm/76mm/80mm
	Paper Thickness	0.06~0.08mm
	Roll Dia	Max. Ø 83 mm
Paper	Paper Load	Easy paper loading
	Paper Cut	Manual tear or Auto-cutter
Physical Characteristics	Working Condition	0°C~45°C, 10%~80%RH
	Storage Condition	-10°C-60°C,10%~90%RH
	Dimensions	185(D)x142(W)x148(H)mm
	Net weight	2.38kg	Gross weight	2.54kg
Reliability	Printing head	150KM
	cutter	1.5million
Accessories		data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option)
Packing	Individual box	Dimension 25X20X16cm(LXWXH）	1unit/carton
	Master carton	Dimension 63X27X35cm(LXWXH）	6units/carton
OS	Emulation	ESC/POS
	Driver	Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS
	SDK	Android, IOS
