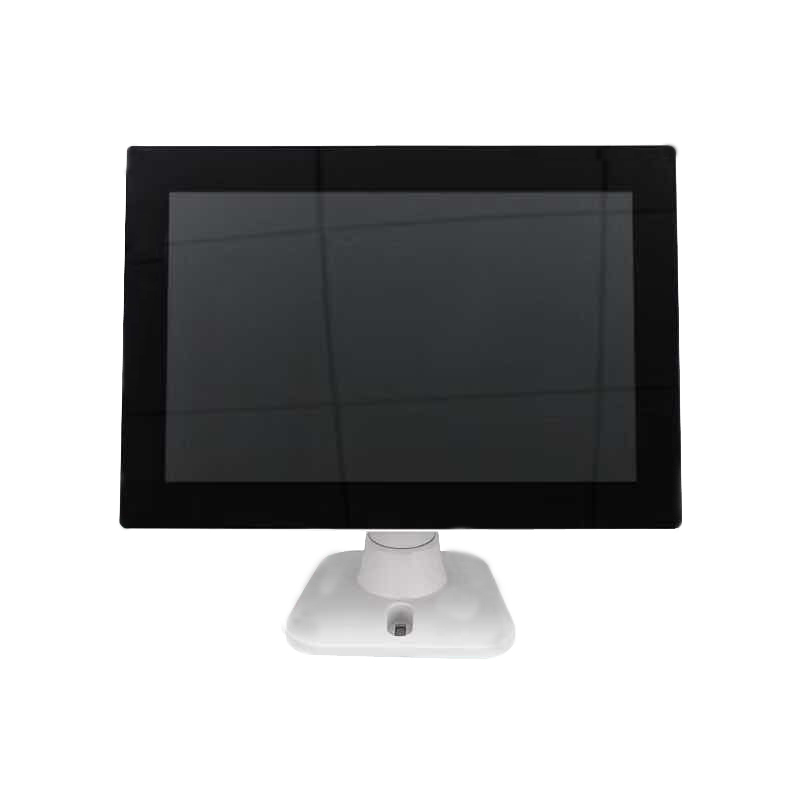

NW-121A All in one Touchscreen Android POS Terminal
|
|
* Using top quality industrial motherboard |
|
* 12.1 inch TFT LED Touch Monitor, 1280 x 800,32bit colour |
|
|
* Sensitive five lines resistance touch screen, the click life can reach 3.5 million |
|
|
ti * Excellent personalized design adapt to any environment |
|
|
* Modular design & convenient maintenance |
|
|
Item |
NW-121A |
|
Mainboard |
RK3288,32Bit |
|
Processor |
Cortex-A17+ |
|
Chipset |
GPU Mail-T764,1.8Ghz |
|
Memory |
1 DDR 533/667 Slot, 2GB |
|
Graphical Display |
Integrated Intel GMA950, Support DirectX9.0 |
|
Outer I/O Interface |
RJ-45 LAN Port x 1 |
|
VGA Port x 1; USB2.0 x 4 |
|
|
Serial Port x 1 |
|
|
DC Power Port x 1 |
|
|
Video Memory |
Max Support 224MB Dynamic Video Memory |
|
Internal memory |
8G |
|
Operation System |
Android 7.0 |
|
Brightness |
250cd/m2 |
|
Resolution |
1280x800(max) |
|
Touch Screen |
Top quality five line resistance touch screen |
|
Visible Angle |
Horizontal: 140, Vertical: 130 |
|
Operation Temperature |
0°C to 40°C |
|
Storage Temperature |
-20°C to 40°C |
|
Power |
DC 12V Outer Adapter Input |
|
|
|
|
