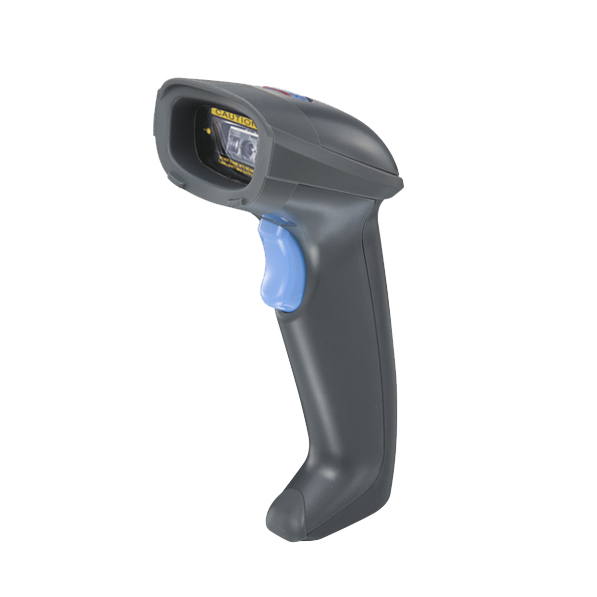

NW- 917D 1D CCD  barcode scanner

Model Number

NW-917D

Performance

Description

Light source

RED LED 660nm contact CCD

Visual Indicators

Blue LED =Decoding Successful

System Interface

ABS

Depth of field

up to 360mm/40mil code39

Resolution

3mil

Scanning Angle

45°

Scanning Distance

40 cm

Scanning Rate

270 scan lines per second

Print Contrast

Minumum 45% Contrast

Light Levels

1000LUX-500LUX

Features

Decode Capabilities

Read All 1D Standard barcode symbologies

Programmable Features

Prefix Code,Length Code ,Barcode Type,ISBN/ISSN/CLSI/UK Plessey conversion,Scanning Mode,Time Out,Baud Rate

Physical

Weight

150g

Housing

ABS

Dimensions (L x W x H)

6.3" x 3.2" x 2"(160mm x 80mm x 50mm)

Color

Black/white

Electrical

Input

DC5V ± 5%

Current

90mA

Environmental

Temperature

Operating 32°-122°F(0°c to 50°c) Storage -15°-140°F(-26°c to 60°c)

Humidity

10%-90% relative humidity ,non-condensing

Shock Resistance

Withstands multiple drops from 5'(1.5m)

Cable Bending Test

500,000 times minimum(30 times/min@500g/45°)

Readable  Symbologies

All UPC/EAN/JAN,EAN128 Code,Code 39. Code 39 Full

AsCII Code32/Italian pharmacy.Code128,CODABAR/NW7

Interleave 25,industrial 25,Matrix 25,MSI/PLESSEY,Telepen code93,code11, china postage,GS1 Databar
