Features:

● New decoding chip for interpreting various 1D

codes

● Scan WeChat and alipay 1D barcode

● Plug and play, easy to set up and quickly match

● Scan 1D wrinkle, scratch bar code

● Withstand multiple 1.2 meters drops to concrete

Application areas:

Mainly used in supermarkets, specialty stores, retail stores, payment and other fields.

Specification:

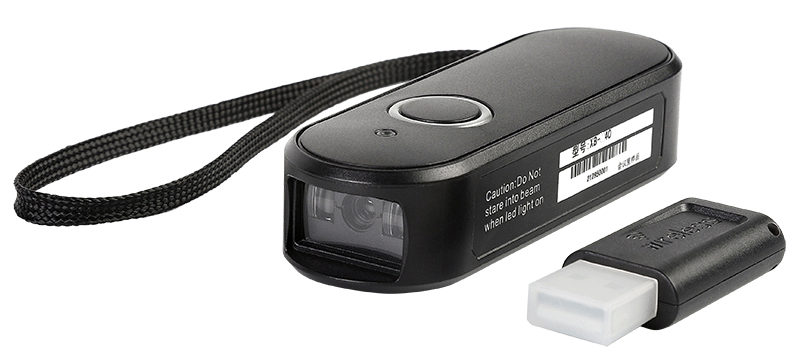

Model Number

NW-BT40

Performance Parameters

Light Sources

617nm Red visible LED

Supported Symbologies

UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5,

Code 11, ISBN, SSN, SISAS, Code 32(Italian pharm code),

Code 39 extended, GS1-128 and ITF-14, GS1

Omnidirectional,

GS1 Limited, Aviation25, RSS 14.

Scan Type

CCD Image Sensor

Resolution Ratio

2500 points

Scan Mode

Manual/Continuous/Automatic Scintillation

/Automatic Induction Scanning

Precision

4mil, 3mil(Optional)

Scan Speed

≥270times/s

Contrast

≥20%

Depth of scan field

20-330mm(0.33mm, PCS90%)

Error Rate

1/5million

Scan Angle

Yaw±55°, Rotation 360°, Pitch±55°

Wireless communication mode

Pairing with mobile bluetooth devices: bluetooth BLE4.0

Wireless transmission distance

Open space: 20 meters or so

Storage Mode

Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory

mode, storage capacity is 512000 characters.

Pairing Mode

One to one: One scanner paired with a Bluetooth mobile

Physical Parameters

Dimensions

90mm*30mm*21mm

Material

ABS+PC

Cable Length

0.8M

Shock Resistance

Withstands multiple times 1.2 meters drops to concrete

Environmental Parameters

Operating Temperature

-20℃~55℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95% (Non-condensing)

Ambient lighting

0~100000LUX

Electrical Parameters

Voltage

DC5V±5%

Lithium battery

800mA

Charging Time

2.5 hours

Battery Working Time

7 hours

Maximum Operating Current(MAX)

170mA

Standby Current

0mA(Standby is to cut off battery power)

Charging Model

Square USB charging cable; plug straight charging
