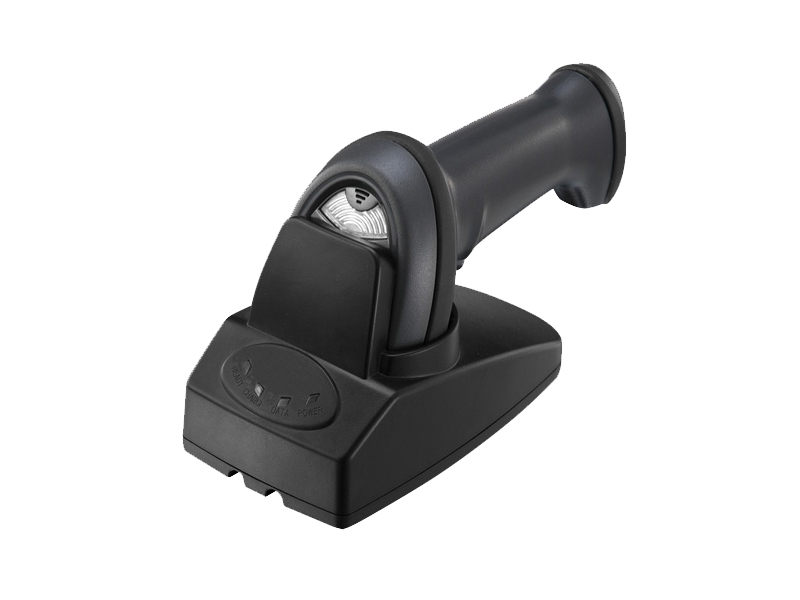

Chargeable 2D barcode reader

Product Name:

Chargeable 2D barcode reader

Product Description

Features:

● The new 32-bit decoder chip. Interpretation of various one-dimensional code / two-

dimensional code

● Inductive charging base, plug and play, easy to set up, can be quickly used with

other office equipment

● key life can be used up to 50 million times, the key structure contains silicone keys,

so that the key bump soft touch soft enhanced life

● support with Chinese direct transmission

● Wireless Bluetooth is about 100 meters wide

● can withstand more than 3 meters free fall

● can scan WeChat, pay treasure bar code

● Store 512,000 characters or so

● can be used with Bluetooth-enabled mobile phones, tablet, laptop directly with the

use of paired

Application areas:

Mainly used in the tax, transportation, medical, express, store and so on

Specification

Model Number	NW-780HB
Performance Parameters
Light Sources	617nm LED Aimer,White LED
Supported Symbologies	1D:UPC/EAN,UPC/EAN with supplementals,Bookland EAN, ISSN,UCC Coupon Extended Code,Code128,GS1-128,ISBT 128,Code39,Code93 Full ASCII,Trioptic Code39,Code32,Code11,Matrix 2 of 5,Interleaved 2 of 5,Discrete 2 of 5,Codebar,MSI,Chinese 2 of 5,GS1 Databar Variants,Korean 3 of 5,ISBT Concat. 2D:PDF417,MicroPDF417,Composite Codes,TLC-39,Data Matrix,Maxi code,QR Code,Micro QR,Aztec.
Scan Type	Image COMS
Scan Speed	>25inch/63cm per second
Scan Method	Manually/Successive Scanning
Scan Angle	Yaw 60°,Rotation 360°,Pitch 60°
Precision	Code 39 4.8mil,UPC60% 5mil,PDF417 5mil,Datamatrix 7.5mil
Depth of scan field	5-390mm
Error Rate	Less than 1/5million
Interface	USB-HID,USB-COM,RS232
Operating Frequency	Bluetooth V2.1+EDR(Class 1)
Transmission Distance	≤100M(Open yard)
Storage Ability	512000Bytes
Pairing Model	One to one,Many to one,One to many(Max 7 channels)
Receiving End	Dedicated Bluetooth receiving base, Android、IOS Mobile devices.
Physical Parameters
Dimensions	102mm71mm177mm
Weight	250g
Material	ABS+PC
Cable Length	1M
Environmental Parameters
Operating Temperature	-20℃~50℃
Storage Temperature	-40℃~70℃
Relative Humidity	0%~95%（Non-condensing）
Drop/Shock Resistance	Withstands multiple times 3 meters drops to concrete
Electrical Parameters
Voltage	DC5V±1%
Current	400mA
Lithium battery	2200mA
Charging Time	5h
Standby Current	0mA
Battery Working Times	5.5h
